Joist Hangers
-
Timco Timber Hangers Galvanised Steel
Timber Hangers - Mini Plus - GalvanisedThese TIMCO Mini Plus Timber Hangers Provide A Compact, Economical Timber To Timber Connection For Light Duty Applications Including Loft Hatches, Ceiling Joists, Decking And Trimmers. Manufactured From Pre Galvanised Carbon Steel, They Offer Corrosion Resistance For Service Class 2 Environments And Conform To Eurocode 5, With A Base Tag Designed To Help Prevent Rotation During Installation.
£0.73 Ex. VAT £0.88 In. VAT
-
Timco Timber Hangers Stainless Steel
Timber Hangers - Mini - A2 Stainless SteelThese Mini Timber Hangers Provide A Compact, Economical Timber To Timber Connection For Loft Hatches, Decking, Ceiling Joists And Trimmers. Manufactured From A2 304 Austenitic Stainless Steel, They Are Suitable For Corrosive Environments And Materials Such As Green Oak. The Base Tag Helps Resist Rotation, While The Design Conforms To Eurocode 5, Service Class 3.
£5.95 Ex. VAT £7.14 In. VAT
-
Timco Timber Hangers Galvanised Steel
Timber Hangers - Mini - GalvanisedThese Mini Timber Hangers Provide A Compact, Light Duty Timber To Timber Connection For Loft Hatches, Decking, Ceiling Joists And Trimmers. Manufactured From Galvanised Carbon Steel For Corrosion Resistance, They Suit Internal And Covered External Applications. The Base Tag Helps Reduce Rotation, While Compliance With Eurocode 5 Service Class 2 Supports Reliable Structural Installation.
£0.65 Ex. VAT £0.78 In. VAT
-
Timco Single Piece Masonry Hangers Galvanised Steel
Single Piece Masonry Hangers - GalvanisedTIMCO Single Piece Masonry Hangers Are Designed To Support Timber Joists From Brick Or Block Walls In New Build Or Renovation Work. Made From Pre-Galvanised Carbon Steel, They Provide Reliable Corrosion Resistance For Internal Structural Applications. The Straight Top Flange And No Weld Construction Support Efficient Installation, With Compliance To Eurocode 6 And Service Class 2.
£1.89 - £2.43 Ex. VAT £2.27 - £2.91 In. VAT
-
Timco Timber Hangers Galvanised Steel
Timber Hangers - No Tag - GalvanisedTimco Timber Hangers Provide A Quick, Secure Fixing For Timber To Timber Connections, Including Joists And Stairwell Trimming. Manufactured From Pre-Galvanised Carbon Steel For Corrosion Resistance, This No Tag Hanger Accepts Joists Up To 220 Mm Deep And Conforms To Eurocode 5 Service Class 2 For Structural Use.
£0.61 Ex. VAT £0.73 In. VAT
-
Timco Timber Hangers Stainless Steel, Tan
Timber Hangers - Standard - A2 Stainless SteelThese TIMCO Standard Timber Hangers Provide A Practical Timber To Timber Connection For Joists, Stairwell Trimming And Similar Structural Applications. Manufactured From A2-304 Austenitic Stainless Steel, They Are Suitable For Corrosive Environments And Materials Such As Green Oak. Increased Leg Lengths Allow Use With Joists Up To 225mm Deep, With Compliance To Eurocode 5 And Service Class 3.
£6.05 - £10.45 Ex. VAT £7.26 - £12.54 In. VAT
-
Timco Timber Hangers Galvanised Steel, Tan
Timber Hangers - Standard - GalvanisedThese TIMCO Standard Timber Hangers Provide A Practical Timber To Timber Connection For Joists, Stairwell Trimming And Similar Structural Fixing Work. Manufactured From Galvanised Carbon Steel, They Offer Corrosion Resistance For Service Class 2 Applications, With Increased Leg Lengths To Support Joists Up To 225mm Deep. Conforms To Eurocode 5 For Reliable Building Hardware Specification.
£2.01 Ex. VAT £2.41 In. VAT
-

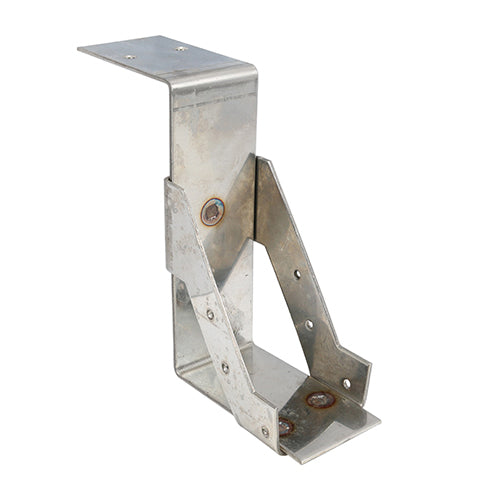

Timco Welded Masonry Joist Hangers, A2 Stainless Steel

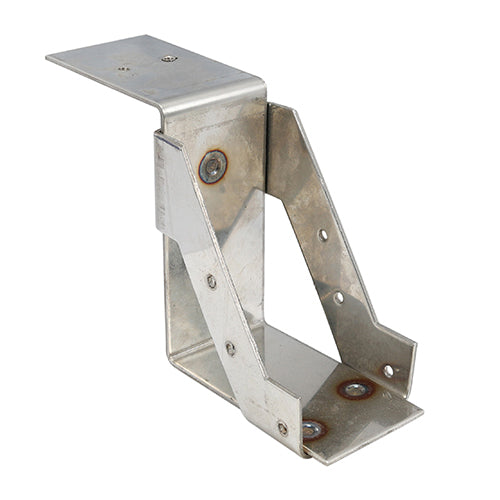

Welded Masonry Joist Hangers - A2 Stainless SteelDesigned To Support Timber Joists From Brick Or Block Walls, These TIMCO Welded Masonry Joist Hangers Are Suitable For New Build Installation Or Renovation Work Where Existing Brickwork Is Raked Out. Manufactured From A2-304 Austenitic Stainless Steel For Corrosion Resistance, They Are Intended For Corrosive Environments And Green Oak Applications, With Compliance To Eurocode 6 And Service Class 3.
£9.65 - £23.87 Ex. VAT £11.58 - £28.64 In. VAT
-
Timco Welded Masonry Joist Hangers Galvanised Steel
Welded Masonry Joist Hangers - GalvanisedTIMCO Welded Masonry Joist Hangers Are Designed To Support Timber Joists From Brick Or Block Walls In New Builds And Renovation Work. Manufactured From Galvanised Carbon Steel, They Provide Corrosion Resistance For Service Class 2 Environments And Can Be Built Into Masonry Or Fitted By Raking Out Existing Brickwork. Conforms To Eurocode 6 For Compliant Structural Installations.
£2.61 - £7.66 Ex. VAT £3.13 - £9.19 In. VAT
-
Timco Timber Hangers Galvanised Steel
Timber Hangers - Long Leg - GalvanisedDesigned For Deeper Timber To Timber Fixings, These Long Leg Timber Hangers Suit Loft Conversions And Under Slung Floor Joist Applications Where The Hanger Extends Below The Supporting Beam. Manufactured From Pre Galvanised Carbon Steel For Corrosion Resistance, They Accommodate Joists Up To 250mm Deep And Conform To Eurocode 5, Service Class 2.
£3.23 - £5.00 Ex. VAT £3.88 - £6.00 In. VAT
Shop Joist Hangers for Timber to Timber Connections at Fixings2Go
Discover our full collection of Joist Hangers at Fixings2Go. Part of our wider Hangers & Connectors collection these TIMCO timber hangers carry joists trimmers and rafters where they meet beams and headers. A properly nailed hanger transfers the full load of the floor into the supporting timber which no skew nailed joint can match.
Standard timber hangers cover widths from 38mm to 150mm including mini heights of 67mm to 100mm for light trimming long leg versions around 300mm for deep beams and heavy duty patterns for joists 150mm to 250mm deep. Galvanised steel handles most internal work while stainless versions in 44mm to 100mm widths take on coastal and treated timber builds. Single piece and welded masonry hangers extend the family into brick and block walls.
Frequently Asked Questions
Do joist hangers need every hole nailed?
Yes. The published load capacity assumes every pre punched hole is filled with a square twist nail. Missing nails reduce the connection strength well below its rating.
What size joist hanger do I need?
Match the hanger width to the joist width exactly then choose a height at least 60 percent of the joist depth. A 47 x 200mm joist takes a 47mm hanger around 125mm or taller.
Why shop for Joist Hangers at Fixings2Go?
We stock TIMCO hangers from mini to heavy duty in galvanised and stainless at trade prices with fast UK delivery.
Need More Help Choosing the Right Joist Hangers?
Our friendly customer service team are always ready to provide answers offer support and share information. So if you are still unsure on which product best suits your needs or for any other questions or queries please do not hesitate to give us a call on 01424 220384.
